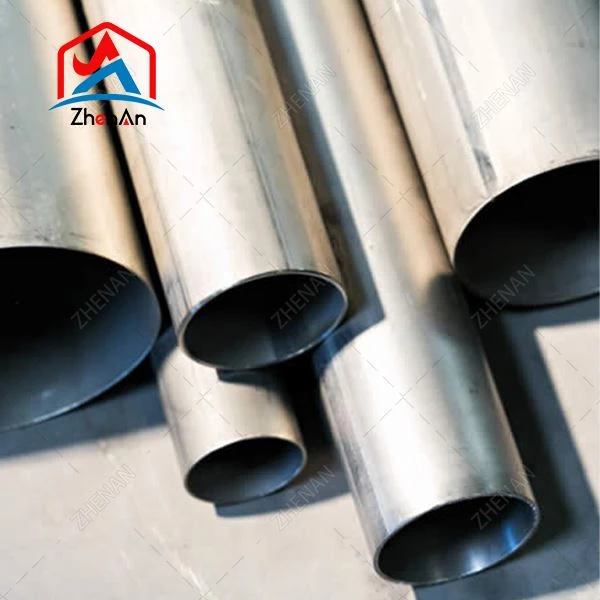

Seamless Titanium Yeeb Nkab
Titanium Seamless Tubes nyob rau hauv Suav teb
| Titanium yeeb nkab hom | Tawm txoj kab uas hla | Phab ntsa thickness | Ntev |
|---|---|---|---|
| NB Loj (hauv Tshuag) | 1/8" ~ 8" | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 TSI | Txog li 6 meters |
| Seamless Yeeb Nkab (Kev Cai Loj) | 5. 0 hli ~ 203.2mm | Raws li kev xav tau | Txog li 6 meters |
| Welded Yeeb Nkab (hauv Tshuag + Custom Size) | 5. 0mm ~ 1219.2mm | 1.0 ~ 15.0 hli | Txog li 6 meters |
| Titanium yeeb nkab hom | Tawm txoj kab uas hla | Qhov ntau thiab tsawg | Ntev |
|---|---|---|---|
| NB Loj (hauv Tshuag) | .0035" ~ 8" | 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" | Txiav kom ntev |
| Seamless Tube (Qhov ntau thiab tsawg) | 6.35 hli OD txog 101.6 hli OD | Raws li kev xav tau | Txiav kom ntev |
| Welded Tube (ERW Tube) (hauv Tshuag + Customizes) | 6.35 hli OD txog 152 hli OD | Raws li kev xav tau | Txiav kom ntev |
Titanium Hlau Tube Specifications
| Dimension | Sab nraud | Thickness | Ntev |
|---|---|---|---|
| Qhov Loj Loj: | 0.5mm - 330mm | 0.4mm - 10mm | Max 15 m |
| Manufacturing Standards | ASTM B338, ASTM B861, DIN 17 861 | ||
Titanium Welded Tube Specifications
| Dimension | Sab nraud | Thickness | Ntev |
|---|---|---|---|
| Qhov Loj Loj: | 114mm-20000mm | 0.5mm - 50mm | Max 15 m |
| Manufacturing Standards | ASTM B338, ASTM B 862 | ||
Titanium Welded Tube & Seamless Tubing Nto tiav
| Nto tiav | Internal Surface (ID) | Sab nrauv nto (OD) | |||
| Roughness nruab nrab (RA) | Roughness nruab nrab (RA) | ||||
| μ inch | μm | μ inch | μm | ||
| AP | Annealed & Pickled | Tsis tau txhais | Tsis tau txhais | 40 los tsis txhais | 1.0 lossis Tsis tau txhais |
| BA | Beight Annealed | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| MP | Mechanical Polish | 40,32,25,20 | 1.0,0.8,0.6,0.5 | 32 | 0.8 |
| EP | Hluav taws xob Polish | 15,10,7,5 | 0.38,0.25,0.20;0.13 | 32 | 0.8 |
Titanium yeeb nkab fittings nyob rau hauv Suav teb
Thaum lub luj tshib yog welded, carbides yog sib cais los ntawm rov ua cua sov, uas txo cov corrosion kuj thiab txhua yam khoom. Lub hardenability tom qab vuam yog qhov loj thiab cov kab nrib pleb yuav tshwm sim. Yog tias tib hom electrode siv rau vuam, preheating saum 300 degree thiab qeeb txias ntawm li 700 degree tom qab vuam yuav tsum tau nqa tawm. Yog tias qhov vuam tsis tuaj yeem raug kho tom qab vuam kub, chromium-nickel-titanium alloy yeeb nkab vuam rods yuav tsum tau siv. Kev tuav cov titanium alloy yeeb nkab lub luj tshib tuaj yeem txhim kho lawv txoj kev nyab xeeb thiab ua kom ntev lawv lub neej kev pab.
Thaum nruabtitanium cevLub luj tshib, kev ua haujlwm sealing yuav tsum tau ua kom tsis txhob xau, uas yuav cuam tshuam rau kev ua haujlwm ntawm cov kav dej. Thaum txhim kho titanium alloy yeeb nkab luj tshib, titanium alloy yeeb nkab luj tshib tuaj yeem ntsia tau ncaj qha rau ntawm cov kav dej raws li cov kauj ruam kev sib txuas thiab ntsia raws li kev coj ua. Raws li ib txwm muaj, nws tuaj yeem ntsia tau rau hauv txhua txoj haujlwm ntawm cov kav dej, tab sis nws yuav tsum yooj yim rau kev khiav lag luam thiab tshuaj xyuas.
Ua tib zoo tiv thaiv kev khiav ntawm qhov nruab nrab hauv titanium alloy yeeb nkab luj tshib los ntawm ntsug mus rau sab saud ntws hauv qab valve disc. Lub titanium alloy yeeb nkab luj tshib tsuas tuaj yeem ntsia tau kab rov tav.
Titanium Tube hauv Tshuag
Titanium Piping Hauv Tshuag
Titanium Pipeline hauv Tshuag
